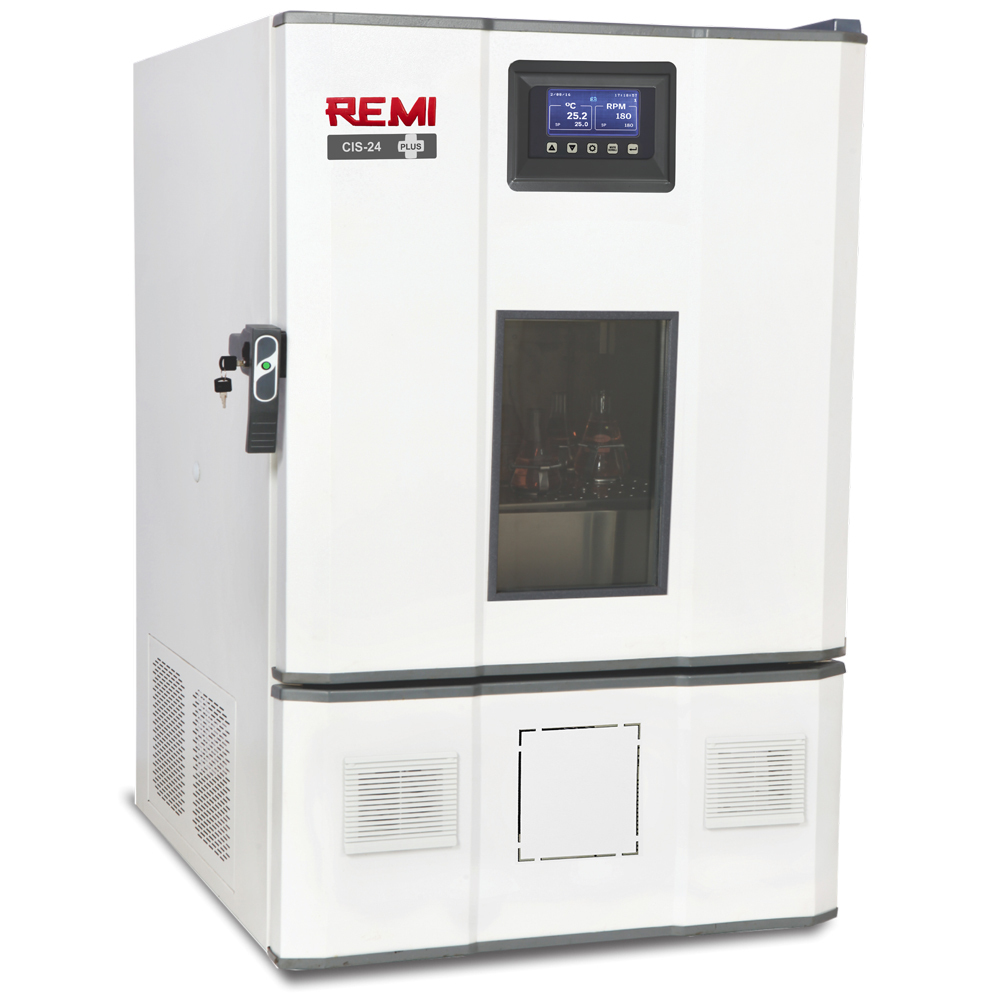

Orbital Incubator Shaker

Price 325700 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Orbital Incubator Shaker Specification

Power Supply
Electric

Speed Range
20-250 RPM

Usage
Industrial

Dimension (L*W*H)
660x765x650 Millimeter (mm)

Material
Stainless Steel

Warranty
1 Year

Orbital Incubator Shaker Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Delivery Time
2-10 Days

Main Export Market(s)
Australia, South America, Western Europe, Middle East, Africa, Asia

Main Domestic Market
All India

About Orbital Incubator Shaker

Our companys name is widely popular in the entire industry for manufacturing and exporting an impeccable stock of Orbital Shaking Incubators. These incubators serve the dual purpose of shaking and storage applications. Widely applicable in enzyme reactions, life science research, tissue culture and biotechnology labs, these incubators have excellent quality of stainless steel tubular heaters for heating purpose. Offered in different models of capacities and specifications, these Orbital Shaking Incubators are economical in prices.

Features

There is brushless induction motor in the shaking incubators for continuous operation
For gentle shaking and maintaining the required speed, the incubators are provided with step less variable frequency drive
In these incubators, there is automatic calibration for temperature

Further Details

The REMI Orbital Shaking Incubators are designed for precise temperature control and simultaneous shaking applications required in fermentation studies, enzyme reactions, life science, tissue culture and biotechnology research labs.

These chambers are available in standard & GMP versions.

Brushless Induction Motor with variable frequency drive suitable for continuous operation
Step less variable frequency drive ensures gentle shaking start and maintains set speed
Maximum shaking capacity - 9 flasks x 2000 ml
Powerful fan motor for forced air circulation to maintain uniform conditions inside chamber
Heating by long life SS tubular heaters
Validation protocol with IQ, OQ, DQ Documentation as per ICH guidelines
Counter balanced mechanism for high stability in uneven load of different sized flasks
Microprocessor controller with 4 LCD display for display of shaking speed & temperature
Battery Backup for Controller - 12 V, 7.2 Ah sealed maintenance free, Fully charged battery runs for more than eight hours
Automatic Calibration for temperature
Self-Diagnosis for errors
Power failure and resumption recorded with date and time
Machine filled PUF insulation to eliminate void pockets
Unique design of thermal barrier for better energy efficiency
Hermetically sealed Compressor with CFC free refrigeran

Technical Specifications

	CIS-24 Plus	RIS-24 Plus
Temperature range and accuracy	5oC to 60oC, +0.5oC	5oC above ambient to 60oC, +0.5oC
Internal volume (liters)	215
Platform size	580mm x 600mm
Maximum shaking capacity (volume x No. Of flasks)	100mlx 49, 150mlx 49, 250mlx33, 500mlx24, 1000mlx15, 2000mlx9
Shaking speed range (RPM)	20 to 250
Shaking Amplitude	25mm
Internal dimensions WxDxH(mm)	660x765x650
External dimensions WxDxH(mm)	800x1150x1300
Temperature control	Microprocessor with PT-100 sensor
Display	4 LCD Screen, large size display for ease of reading
Power failure alarm	Audio visual alarm
Door open alarm	Audio alarm in case door open for over one minute
Temperature variation alarm	Set temperature +2oC, Audio visual alarm
Illumination	8 Watts Fluorescent Tube
Internal body material	Stainless steel-304 grade(standard models), stainless steel-316 grade(GMP models)
External body material	Power coated CRCA steel (Standard models), Stainless steel-304 grade (GMP models)
Insulation (CFC free polyurethane foam)	70mm minimum for body and 80mm for door
Noise level	Less than 65 db(A)
Recommended voltage stabilizer	VS-02	X
Electrical	220-240 volts, 50Hz, Single phase

Powerful Performance for Professional Use

The Orbital Incubator Shaker offers superior shaking capability with an adjustable speed range from 20 to 250 RPM. Its spacious chamber and precision controls make it suitable for a variety of incubation and mixing processes in industrial and research settings.

Built to Last with Quality Materials

Constructed from high-grade stainless steel and steel, this shaking incubator is designed for long-term durability and resistance to corrosion. Its off-white finish complements any laboratory environment, while ensuring easy maintenance and cleaning.

FAQs of Orbital Incubator Shaker:

Q: How do I operate the Orbital Incubator Shaker for optimal results?

A: To operate the Orbital Incubator Shaker, connect it to an electric power source, set the desired temperature and speed within the 20-250 RPM range, and load your samples in appropriate containers. Adjust the controls as required for your application and monitor the process using the built-in display.

Q: What types of applications are best suited for this shaking incubator?

A: This incubator shaker is ideal for industrial applications requiring controlled mixing and incubation, such as cell culture, microbial cultivation, and biochemical reactions. Its adjustable speed and durable construction make it perfect for laboratories and production facilities alike.

Q: When should maintenance be performed on the shaker to ensure longevity?

A: Routine maintenance, including cleaning the chamber and inspecting mechanical components, should be conducted monthly. Refer to the manufacturers guidelines for detailed advice, and ensure the unit is powered off during any maintenance procedures.

Q: Where can I install the Orbital Incubator Shaker in my facility?

A: This model is designed as a non-wall mounted unit, suitable for benchtop or floor installation in a clean, dry area. Ensure there is sufficient ventilation around the equipment for efficient operation.

Q: What is the process for adjusting the speed and ensuring uniform mixing?

A: To adjust the speed, use the control panel to select the desired RPM between 20 and 250. Uniform mixing is achieved through the orbital motion, which distributes samples evenly across the tray, ensuring consistent results.

Q: How does this incubator shaker benefit industrial operations?

A: The Orbital Incubator Shaker increases efficiency and consistency in industrial and laboratory processes. Its precise control and uniform shaking improve sample quality and reproducibility, reducing manual labor and potential errors.
