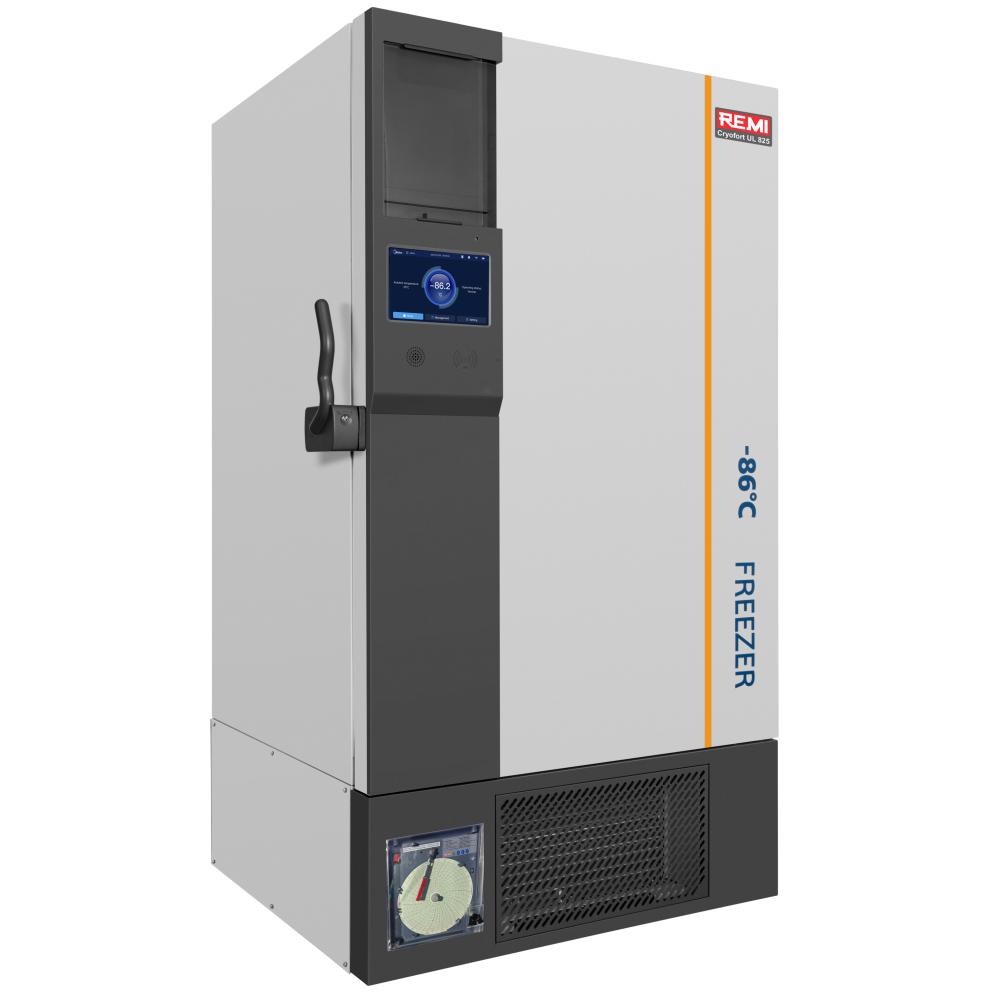

Cryofort UL Series

Name: Cryofort UL Series
Brand: REMI ELEKTROTECHNIK LIMITED
Price: 1150500.0 INR
Availability: InStock

Price 1150500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cryofort UL Series Specification

Display Type
7 Touchscreen LCD

Shape
Vertical, Upright

Power Supply
Single Phase AC

Temperature Resistance
Up to -86C

Accuracy
3C

Features
High-insulation, multiple security alarms, Data logging, Key lock, Caster wheels, Password protection, Quick-freeze function

Control Type
Microprocessor-based Touchscreen Control

Type
Ultra Low Temperature Freezer

Dimension (L*W*H)
820 x 915 x 1980 mm

Equipment Type
Freezer

Equipment Materials
Stainless Steel Internal & Powder Coated GI External

Power
1600 W

Voltage
230V, 50Hz

Material
Stainless Steel / GI

Application
Biomedical, Clinical, Laboratory, Vaccine & Sample Storage

Capacity (Ltr)
728 Ltr

Internal Material
Stainless Steel 304

Mobility
Heavy Duty Lockable Castor Wheels

Inner Doors
4 Individual Inner Doors for Minimum Cold Loss

Shelves
4 Adjustable Stainless Steel Shelves

Remote Alarm
Yes, RS485 Interface

Insulation Thickness
150 mm Polyurethane Foam

Noise Level
65 dB

Data Logging
Built-in USB Port & Chart Recorder

Alarm Systems
High/Low Temperature, Power Failure, Door Ajar, Battery Low

Door Lock
Key Lock with RFID Card Access

Compressor Type
Two-stage Cascade

External Material
Powder Coated Galvanized Iron

Refrigerant
CFC/HCFC Free, Environmentally Friendly

Cooling Type
Direct Cooling, Manual Defrost

Cryofort UL Series About

SMART INVERTER TECHNOLOGY

Variable speed compressors are coupled in the freezer, the compressors will work based on the loads and inter change uctuation. The control system automatically tunes the speed of the compressors to optimize the operation.

ACTIVE ECO TECHNOLOGY OFFERS LOW ENERGY CONSUMPTION

Smart Inverter freezer coupled with environmentally safe and friendly hydrocarbon refrigeration system, allows the freezers to operate at a low level of energy consumption. HIGH TEMPERATURE STABILITY The innovative control algorithm balances the effects of temperature loss with the unique frequency conversion refrigeration system, ensuring the cabinet temperature stability.

VIP PLUS VACUUM INSULATION

provides up to 30% more storage capacity than a conventionally insulated freezer. DUAL COMPRESSOR TECHNOLOGY offer the highest level of security for high-value samples. Using two independent refrigeration systems, if one system fails, the other can maintain the freezer's temperature uniformly in the -80 range

DUAL COMPRESSOR TECHNOLOGY offer the highest level of security for high-value samples. Using two independent refrigeration systems, if one system fails, the other can maintain the freezer's temperature uniformly in the -80 range.

Ultra-Low Temperature Performance

Designed to withstand and maintain temperatures as low as -86C, the Cryofort UL Series freezer harnesses a powerful two-stage cascade compressor system and 150 mm thick polyurethane foam insulation. This ensures rapid recovery and uniform temperature distribution, while minimizing cold loss through its four individual inner doors-making it ideal for secure biological and clinical sample storage.

Advanced Security and Intelligent Controls

Protect valuable samples with multi-layered security, including high/low temperature, power failure, door ajar, and battery low alarms. Access is controlled via a key lock and RFID card system, backed by password protection. The user-friendly microprocessor-based touchscreen (7-inch LCD) provides quick operational adjustments, complete status monitoring, and effortless management from a single, intuitive interface.

Effortless Data Management and Monitoring

Built-in USB port and chart recorder enable consistent data logging for regulatory compliance and traceability. Remote alarm capability and RS485 interface support integration with centralized monitoring systems, ensuring users are instantly informed of any parameter changes or critical events-making laboratory oversight more reliable and efficient.

FAQ's of Cryofort UL Series:

Q: How does the Cryofort UL Series freezer achieve ultra-low temperature storage?

A: The Cryofort UL Series freezer uses a robust two-stage cascade compressor system combined with 150 mm thick polyurethane foam insulation and direct cooling. This design enables the unit to consistently reach and maintain temperatures down to -86C, ensuring the safe storage of sensitive biomedical, clinical, and laboratory samples.

Q: What materials are used in the construction of the freezer, and what are the benefits?

A: The freezer features an interior of corrosion-resistant Stainless Steel 304 and an exterior made from powder-coated galvanized iron. This combination provides durability, easy cleaning, and long-term reliability, ideal for demanding laboratory and medical environments.

Q: When should the manual defrost process be initiated, and how is it done?

A: Manual defrosting should be initiated when noticeable frost accumulation impacts cooling efficiency or as part of routine maintenance, depending on usage frequency. To defrost, transfer stored items to a suitable backup freezer, switch off the unit, and leave doors open until all ice has melted. Clean and dry the interior before restarting the freezer.

Q: Where can the Cryofort UL Series be installed, considering its dimensions and mobility?

A: The freezer, measuring 820 x 915 x 1980 mm, is best suited for laboratories, clinics, or biomedical storage rooms with sufficient space and access. Heavy-duty lockable castor wheels allow easy movement and positioning within your facility.

Q: What are the built-in security and alarm features of the Cryofort UL Series?

A: The freezer offers high/low temperature, power failure, door ajar, and battery low alarms. Security is reinforced with a key lock and RFID card access, as well as password protection, ensuring only authorized personnel can access stored materials.

Q: How does data logging work, and why is it beneficial?

A: Data logging is managed through a built-in USB port and chart recorder, which continuously records temperature data and events. This information helps meet regulatory requirements, supports quality assurance, and aids in troubleshooting should a security event or malfunction occur.

Q: What are the usage applications for the Cryofort UL Series freezer?

A: This ultra-low temperature freezer is suitable for storing vaccines, biological samples, pharmaceutical compounds, and other temperature-sensitive materials. Its precise temperature control, ample capacity, and advanced security features make it valuable for biomedical, clinical, and laboratory settings.
