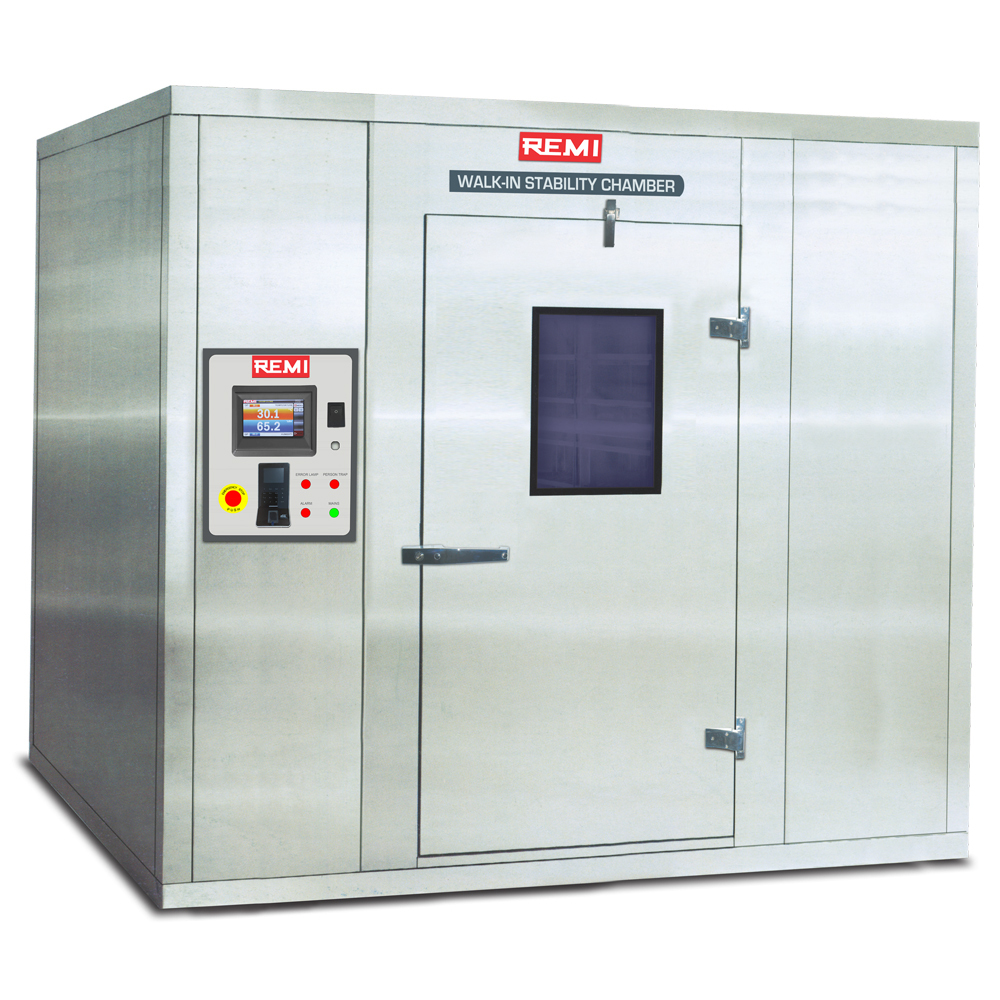

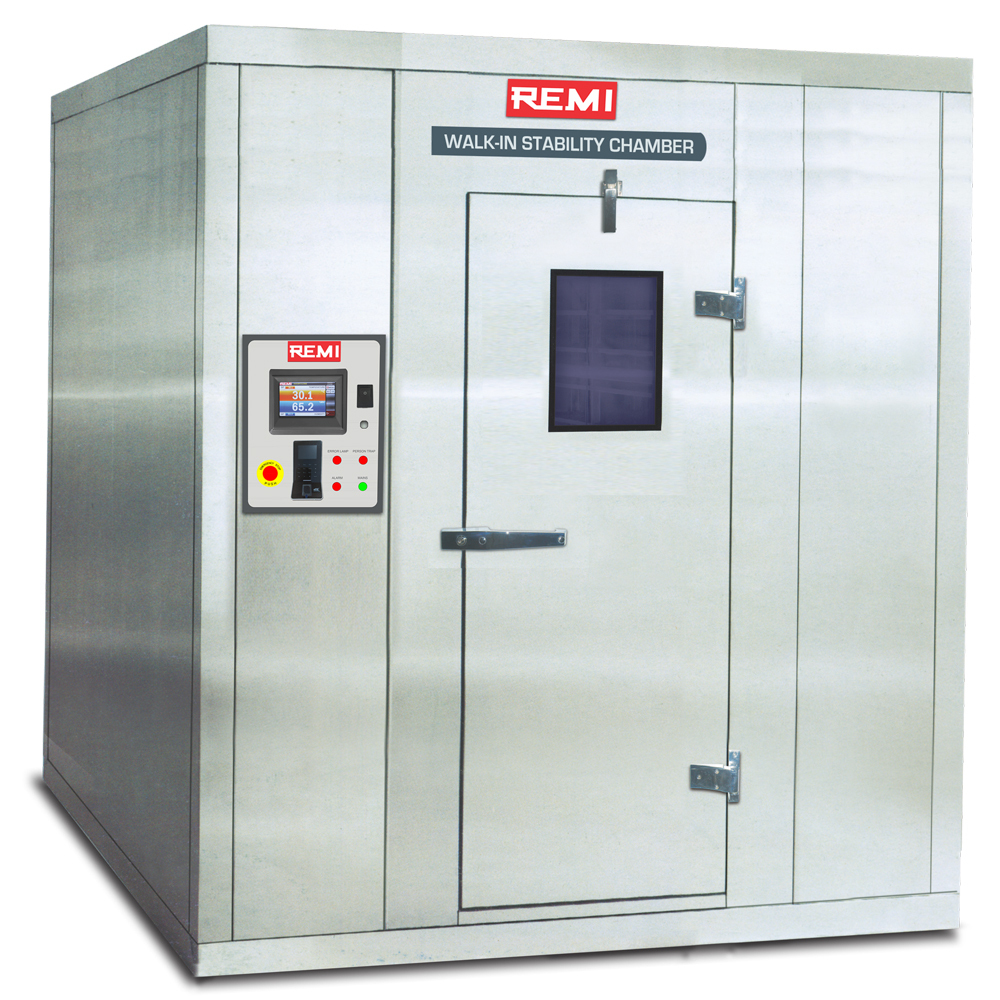

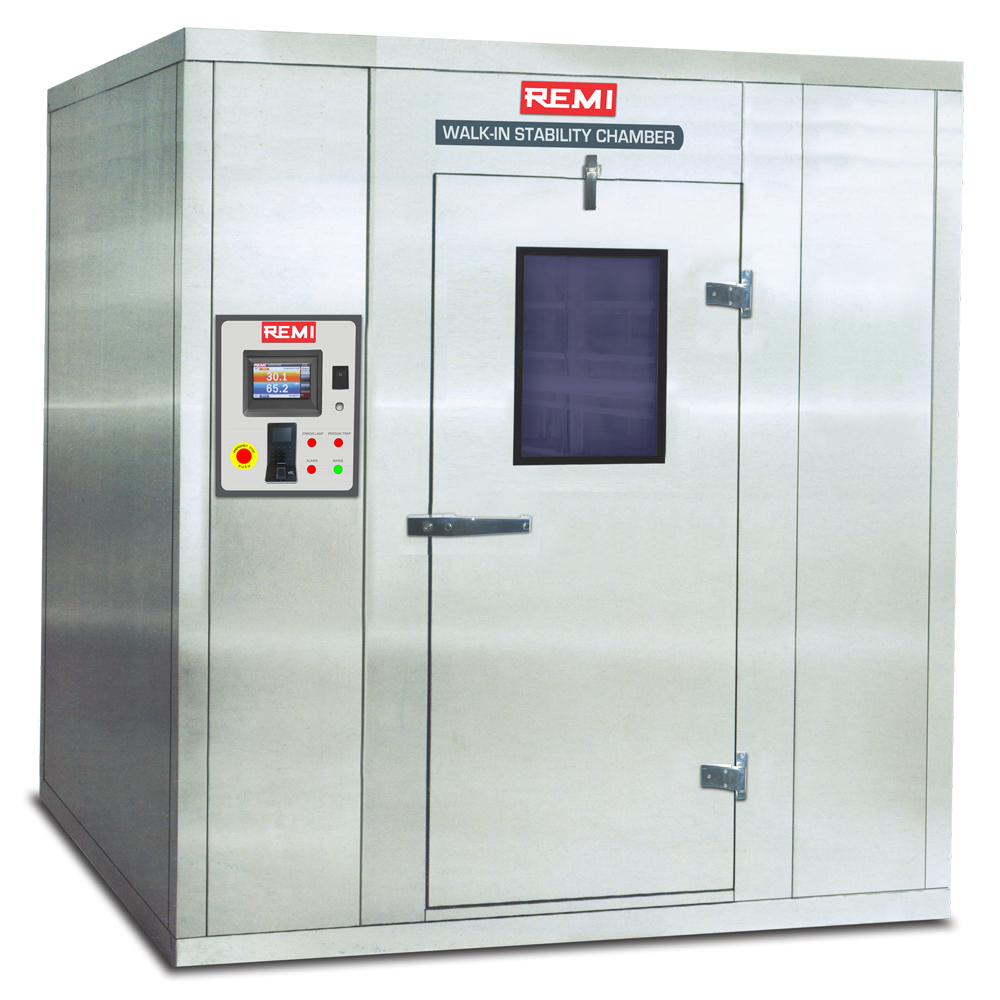

Walk In Chamber

Walk In Chamber
Walk In Chamber
Product Code : 80
Product Description

Acknowledged in the entire industry for excellence and perfection, we are highly proficient in manufacturing and exporting an advanced stock of Walk In Chamber. These chambers have the capability to monitor and control the temperature and humidity level for safe storage and processing work. We make available these chambers in both standard as well as customized models with clients' specified technicalities. Only certified quality of raw materials and components are used for manufacturing this Walk In Chamber.

Features

  • This model is incorporated with control systems & dedicated REMI  software for enhancing the performance
  • This type of chamber is very easy to install at the site
  • Double walled construction with modular panels and PUF insulation

Further Details

REMI Walk in chambers are designed for simulating, monitoring & control of environmental conditions like temperature & humidity. All these chambers are double walled & modular in construction, easy to assemble at site. They are available in standard sizes & can also be tailor made to suit specific requirements. Forced air circulation with the help of fan blower maintains uniform conditions. Use of intelligent control systems & dedicated REMI  software complying to 21 CFR Part 11 requirements greatly enhances the performance. These chambers can be provided with standby refrigeration & humidity systems (optional) for uninterrupted functioning.

CONSTRUCTION

  • Double walled prefabricated modular panels with PUF insulation, easy to assemble at site

  • Standard model with inner of Stainless Steel (304 Grade) and outer Powder coated steel sheet

  • GMP model with inner (316Grade) and outer of Stainless Steel (304 Grade)

  • CFC free Refrigeration system with split type condensing unit located outside lab helps to emit hot air beyond working area

  • Heating by long lasting SS tubular heaters

  • Humidity by steam injection. Boiler and water reservoir made of SS with heater and low water level cut off

  • Forced Air Circulation by heavy duty motor

  • SS racks and trays

Features of Remi Software complying to 21 CFR Part 11

  • Multiple level alpha numerical passwords with password ageing

  • Electronic signature

  • Secured audit trail report

  • Alarm report with mention of alarm condition

  • Mean Kinetic Temperature, can be calculated for user defined period

  • Reports in graphical and tabular form

  • Data stored in PC server with LAN connectivity, accessible on any PC with password authentication

  • Blocked user access after three unsuccessful login attempts

  • Multi chamber data acquisition on single software supports 30 machines

  • Supports communication through Ethernet / RS-485

  • Supports web based online remote access via Ethernet

  • GSM mobile alert on six cell phones via SMS in case of deviations

  • Biometrics system for door access by authorized person with log

  • Possible to integrate with BMS

  • Online and offline Trends



OPTIONAL ACCESSORIES

  • PLC Based Control System with HMI Touch Screen Mono lit

  • Software compliant to 21 CFR Part 11 requirements

  • Data logger with 8 / 16 Sensors (4+4 / 8+8 Temperature and Humidity)

  • Standby Refrigeration System

  • Standby Humidity System

  • Biometrics Magnetic Door Access for Secured Door opening with software to maintain log

  • GSM Mobile Alert for six Numbers

Technical Data

WALK-IN STABILITY CHAMBERS

WSC-50

WSC-80

WSC-100

WSC-120

WSC-150

WALK-IN COLD ROOM

WCR-50

WCR-80

WCR-100

WCR-120

WCR-150

Internal Volume (Liters)

5000

8000

10000

12500

15000

Number of Shelves

16

24

32

48

48

Internal Dimension W x D x H (mm)

1250 x 2000 x 2000

2000 x 2000 x 2000

2000 x 2000 x 2500

2000 x 2500 x 2400

2500 x 2500 x 2400

External Dimension W x D x H (mm)

1410 x 2950 x 2160

2160 x 2950 x 2160

2160 x 2950 x 2660

2160 x 3450 x 2560

2660 x 3450 x 2560

Internal Body Material

Stainless Steel 304 grade (Standard Models), Stainless Steel 316 grade (GMP Models)

External Body Material

Powder Coated CRCA Steel (Standard Models), Stainless Steel 304 grade (GMP Models)

Insulation

80 mm minimum, CFC free polyurethane foam

Illumination

Fluorescent Tubes

Control & Display

Microprocessor based PID control system with large 4" LCD Display

Power Failure Alarm

Audio Visual Alarm

Door Open Alarm

Audio Alarm in case door open for over one minute

Electrical

220-240 volts, 50Hz, Single Phase











Walk-in Stability Chambers

Walk-in Cold Rooms

Sensor

Capacitance type direct reading

PT-100

Temperature Range & Accuracy

20oC to 60oC, ± 1oC

2oC to 8oC, ± 1oC

Humidity Range (Rh) & Accuracy

40% to 95%, ± 3% RH

xx

Audio Visual Variation Alarm

Set Humidity ± 3% RH,, Set Temperature ± 2oC

Set Temperature ± 2oC
